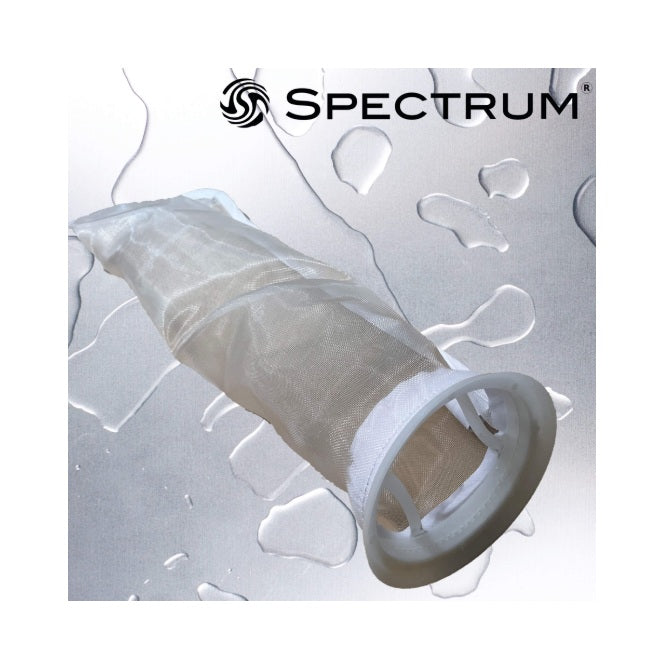

Size 4 - EBPN Nylon Mesh Premier Flared Neck - Economic Bag 4"x14" - Single Layer/Welded Seams

Size 4 - EBPN Nylon Mesh Premier Flared Neck - Economic Bag 4"x14" - Single Layer/Welded Seams

SKU:EBPN-25-4-Flared

Regular price £32.00
Sale price £32.00 Regular price
Tax included.
Shipping is calculated at checkout
If you would like delivery to Scottish Highlands or UK Offshore Areas.Please contact us for Accurate Shipping charges. Call Now

Product Description

Economic Bag Filter - Traditional High Dirt Holding Bag

The Economic Bag Filter is a versatile and cost-efficient solution designed for high dirt-holding capacities. Using a traditional single-layer manufacturing method, these filters are reliable for diverse bulk solid removal applications. The all-welded seam construction ensures durability while maintaining filter integrity, even when holding heavy loads.

  • Choice of Neck Types
    • Neck Ring - Most commonly used (E)
    • Standard Neck (Flanged) - Industry Favourite (S)

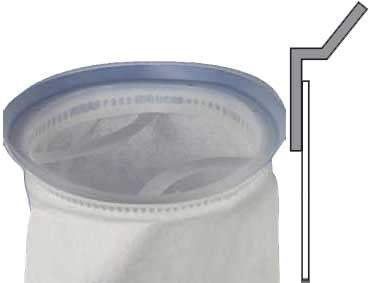

    • Premier Flared Neck - Critical Application gives most positive seal (P)

Technical Data

Specification Details
Efficiency (%) 70
Maximum Operating Pressure 1 bar @ 20°C
Maximum Operating Temperature Polypropylene - 95°C, Polyester - 150°C, Nylon - 160°C
Bag Sizes 3, 4, 1, 2
Dimensions (Bag Size 3) A = 102 mm, B = 229 mm, Area = 0.07 m²
Dimensions (Bag Size 4) A = 102 mm, B = 356 mm, Area = 0.12 m²
Dimensions (Bag Size 1) A = 178 mm, B = 406 mm, Area = 0.23 m²
Dimensions (Bag Size 2) A = 178 mm, B = 813 mm, Area = 0.41 m²





Product Resources

Order Before 2pm For Same Day Processing
