PPG 9 3/4" Spectrum Premier Pleat Glass Fibre
PPG 9 3/4" Spectrum Premier Pleat Glass Fibre
SKU:PPG-0.45-93/4-Single
Share
Product Description
Product Description

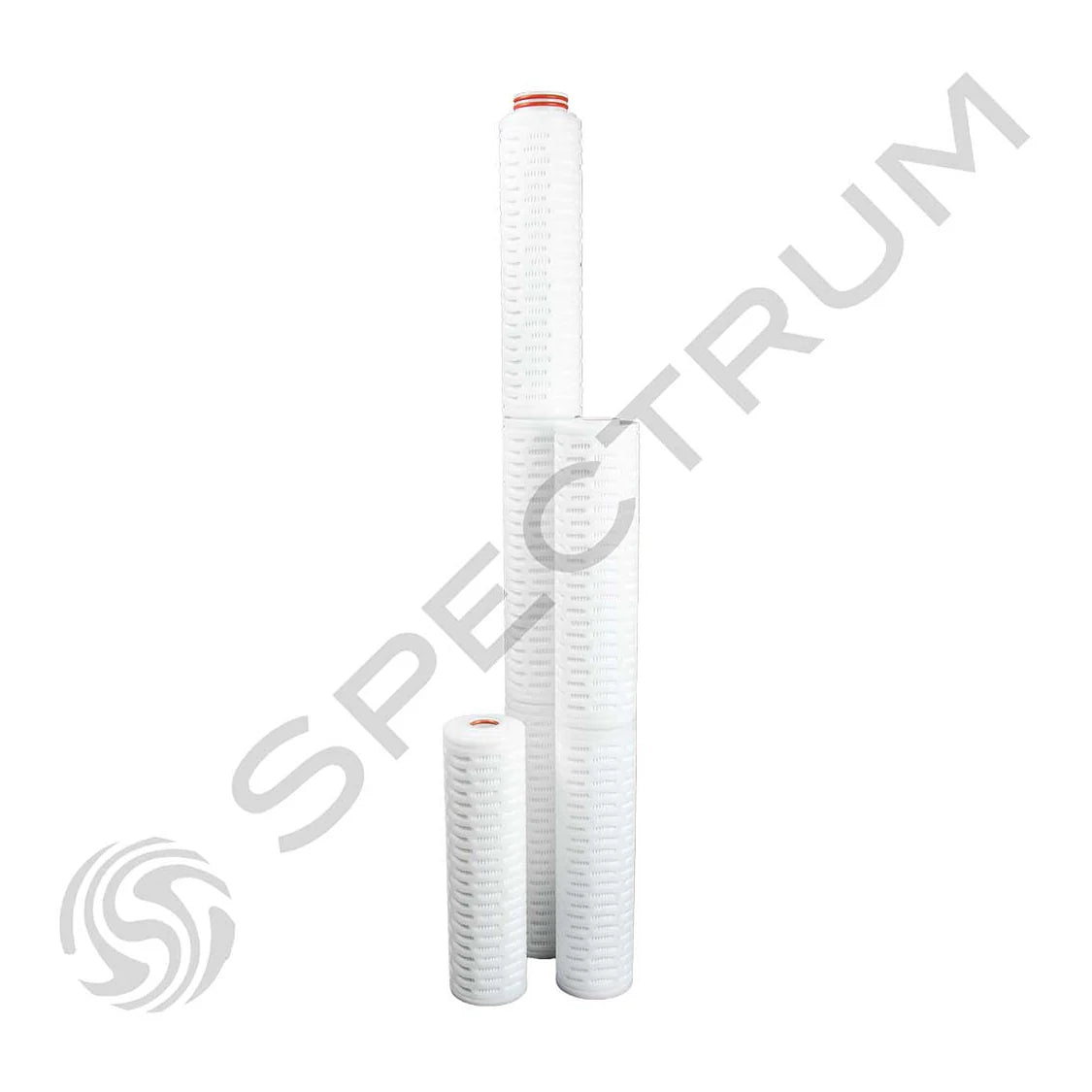

The 9¾" Premier Pleat PPG Glass Fibre Cartridge is a compact yet powerful filtration solution, designed for absolute rated particle removal with superior flow and efficiency. Manufactured with hydrophilic Borosilicate glass fibre media, it delivers 99.98% to 99.9996% filtration efficiency, making it ideal for potable water filtration, cyst reduction, and beverage clarification applications.
Certified to NSF/ANSI Standard 53, this cartridge ensures reliable removal of Cryptosporidium and Giardia cysts, delivering consistent and safe results. With a 0.41m² filtration surface area, the 9¾" PPG cartridge offers excellent dirt-holding capacity, minimal pressure drops, and dependable performance for smaller-scale systems.
Key Features & Benefits:
- Absolute Rated Filtration: Provides up to 99.9996% efficiency, ideal for removing particles and microorganisms.
- NSF-Certified Cyst Removal: Meets NSF/ANSI Standard 53 for effective Cryptosporidium and Giardia cyst removal.
- Compact High Flow Design: Hydrophilic Borosilicate glass fibre media ensures excellent flow with low-pressure drops.
- Durable Construction: 0.41m² surface area within a robust polypropylene cage and thermally welded end caps for reliability.
- Certified Safety: FDA-compliant, WRAS-approved materials guarantee safe and consistent performance.
- Hygienic Packaging: Vacuum-sealed and individually boxed to ensure sterility and ease of installation.
Applications & Industries:
The 9¾" Premier Pleat PPG Glass Fibre Cartridge is perfect for smaller filtration systems across various industries:
- Potable Water Filtration: Removes harmful cysts and microorganisms to ensure water safety.
- Cyst Reduction: Certified to eliminate Cryptosporidium and Giardia cysts effectively.
- Beverage Clarification: Guarantees clarity and quality in small to medium-scale production.
- Industrial Air and Gas Filtration: Reliable for precise particulate removal in compact systems.
Technical Specifications:
| Specification | Details |
|---|---|
| Materials | Borosilicate glass fibre media, polypropylene support layers, core, and end caps. |
| Surface Area (9¾") | 0.41m² |
| Operating Pressure | Maximum 6 bar at 21°C. |
| Maximum Temperature | 82°C (up to 120°C for sterilisation). |
| Sterilisation Cycles | 5 cycles of 20 minutes at 120°C. |
| Micron Ratings | 0.45, 1, 3, 5, 10 µm. |
| Length | 9¾". |
| Certifications | FDA compliant, WRAS approved, NSF/ANSI Standard 53. |
Ordering Guide:
Customise the 9¾" Premier Pleat PPG Cartridge for your filtration needs:
- Micron Ratings: 0.45 to 10 µm.
- End-Caps & Seals: Choose between PSU ring insert (Z) or stainless steel insert (Q).
Example: PPG-0.45-9¾EHS
Why Choose the 9¾" Premier Pleat PPG Cartridge?
The 9¾" Premier Pleat PPG Cartridge offers compact, high-efficiency filtration for applications requiring precision and reliability. Its advanced Borosilicate glass fibre media ensures excellent performance in potable water filtration, cyst reduction, and beverage production. Designed for smaller systems, it combines certified safety standards with long-lasting durability, making it the go-to choice for critical filtration needs.
