PPP 20" Spectrum Premier Pleat Polypropylene

The Premier Pleat Polypropylene Cartridge (PPP) is a versatile and highly efficient filtration solution engineered for targeted particulate removal across a wide range of applications. Built from WRAS-approved, FDA-compliant polypropylene, the PPP guarantees reliability while delivering exceptional performance through its innovative four-layer pleated media. This design not only maximizes dirt-holding capacity but also extends the cartridge's service life by maintaining high flow rates with low pressure drop.

Key Features & Benefits:
• Advanced Filtration Layers: Four pleated media layers provide depth filtration for superior dirt retention and targeted particulate removal.
• Sharp Cut-Off Efficiency: Achieves 95-99% efficiency across a wide range of micron ratings for precise filtration.
• Large Surface Area: Offers up to 50% greater surface area per 10” cartridge (0.56m² standard), optimizing both flow rate and dirt holding.
• Rugged Cage Design: Protects the pleat pack, ensuring structural integrity and enhancing overall flow dynamics.
• Wide Micron Range: Available in ratings from 0.1 to 100 µm to cater to specific application needs.
• Hygienic Packaging: Each cartridge is double-bagged, vacuum-sealed, and individually boxed for contamination-free installation.
• Durable Construction: Operates at pressures up to 6 bar at 21°C and temperatures up to 82°C, with sterilisation possible at 120°C for up to 5 cycles.

Applications & Industries:
The PPP is designed to meet the rigorous demands of various industries, including:
• General Water Filtration: Ideal for pre- and post-treatment in municipal and industrial water systems.
• Beverage Production: Maintains water clarity and quality for superior beverage filtration.
• Healthcare: Ensures integrity and secure seals in critical medical filtration applications.
• Specialist Processes: Suitable for applications facing large particulate challenges or requiring stringent cleanliness.

Technical Specifications:

• Materials: 100% Polypropylene (media, cage, core, end caps)

• Surface Area (10”): 0.56m² (Standard), 1.55m² (LD), 0.26m² (Junior)

• Operating Pressure: Maximum 6 bar at 21°C

• Maximum Temperature: 82°C (Sterilisation at 120°C for up to 5 cycles)

• Available Micron Ratings: 0.1, 0.2, 0.45, 1, 3, 5, 10, 20, 30, 50, 100 µm

• Lengths: 4⅞", 5 (Junior), 9¾", 10", 20", 30", 40"

• Certifications: WRAS approved, FDA compliant materials

Ordering Guide:
Customize your filtration solution with a wide range of configurations:
• Micron Ratings: Options available from 0.1 µm to 100 µm
• Lengths: Choose from 4⅞” to 40” cartridges

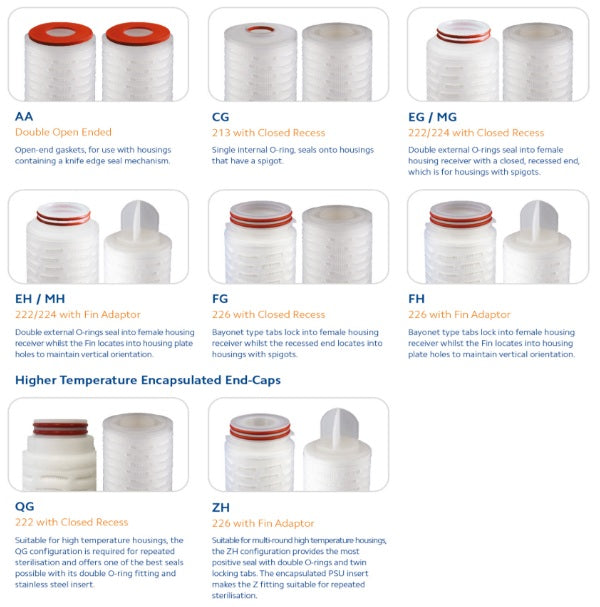

• End-Caps & Seals: Options include PSU ring insert (Z) and stainless steel insert (Q)
    Codes:
    LD = Large Diameter (4.5")
    S = Silicone
    V = Viton
    E = EPDM
    DOE = Double Open Ended (AA)
Example: PPP-5-20AAS = Double Open Ended with Silicone Seal

Why Choose Premier Pleat Polypropylene Cartridges?
Designed for durability and performance, the PPP delivers superior efficiency, high flow rates, and an extended service life. Its innovative pleated media structure combined with a robust cage design makes it the ideal choice for industries demanding precision and reliability in water and particulate filtration. Elevate your filtration system with the PPP – where quality meets innovation.
