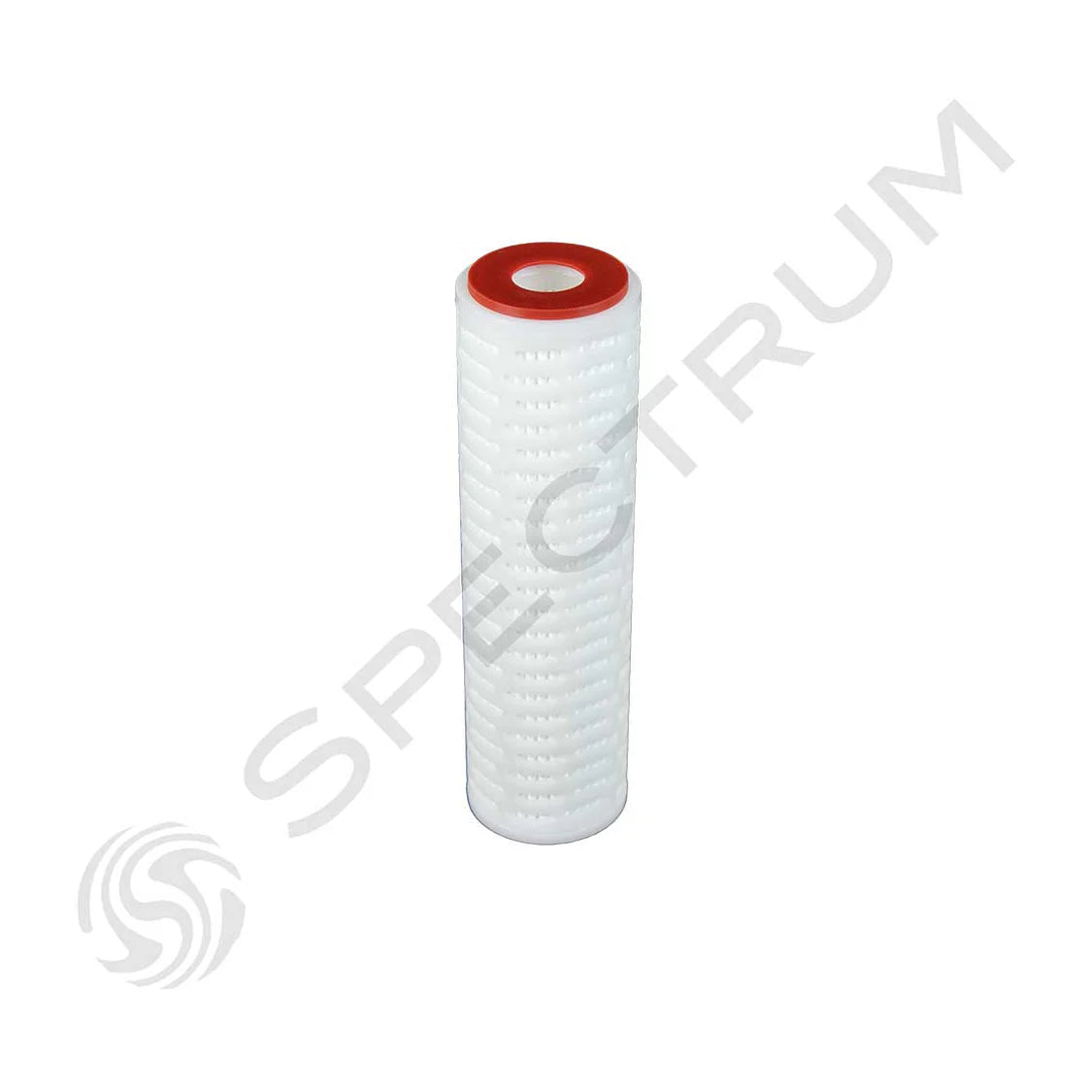

Spectrum Premier Pleat Polyproylene PPP 9 3/4"
Spectrum Premier Pleat Polyproylene PPP 9 3/4"
SKU:PPP-0.1-93/4-Single
Share
The Premier Pleat Polypropylene Cartridge (PPP) is a versatile and highly efficient filtration solution, engineered for targeted particulate removal across a wide range of applications. Its WRAS-approved, FDA-compliant polypropylene construction ensures reliability, while its four-layer pleated media delivers high dirt-holding capacity, extending the cartridge's service life.
The PPP offers sharp cut-off filtration with 95-99% efficiency, supported by a 0.56m² surface area per 10” cartridge, optimising both flow rate and dirt retention. Whether in water treatment, beverage applications, or healthcare, the PPP is designed to exceed industry standards.
Key Features & Benefits:
- Advanced Filtration Layers: Four pleated media layers provide depth filtration and high dirt-holding capacity.
- Sharp Cut-Off Efficiency: Ensures precise particulate removal, achieving 95-99% efficiency across micron ratings.
- Large Surface Area: Up to 50% greater than standard industry cartridges, delivering high flow rates with low-pressure drop.
- Rugged Cage Design: Protects the pleat pack, maintaining structural integrity and enhancing flow dynamics.
- Wide Micron Range: Available in 0.1 to 100 µm, catering to specific application needs.
- Hygienic Packaging: Double-bagged, vacuum-sealed, and individually boxed for contamination-free installation.
- Durable Construction: Operates at up to 6 bar pressure and temperatures of 82°C, with sterilisation possible at 120°C for 5 cycles.
Applications & Industries:
The Premier Pleat Polypropylene Cartridge serves diverse industries requiring precision filtration and robust performance:
- General Water Filtration: Effective for pre- and post-treatment in municipal or industrial systems.
- Beverage Production: Maintains clarity and quality in water and beverage filtration.
- Healthcare: Ensures cartridge integrity and secure seals for critical filtration in medical environments.
- Specialist Use: Suitable for processes involving large particulate challenges or stringent cleanliness requirements.
Technical Specifications:
| Specification | Details |
|---|---|
| Materials | 100% Polypropylene (media, cage, core, end caps). |
| Surface Area (10") | 0.56m² (Standard), 1.55m² (LD), 0.26m² (Junior). |
| Operating Pressure | Max 6 bar at 21°C. |
| Maximum Temperature | 82°C; sterilisation at 120°C (up to 5 cycles). |
| Available Micron Ratings | 0.1, 0.2, 0.45, 1, 3, 5, 10, 20, 30, 50, 100 µm. |

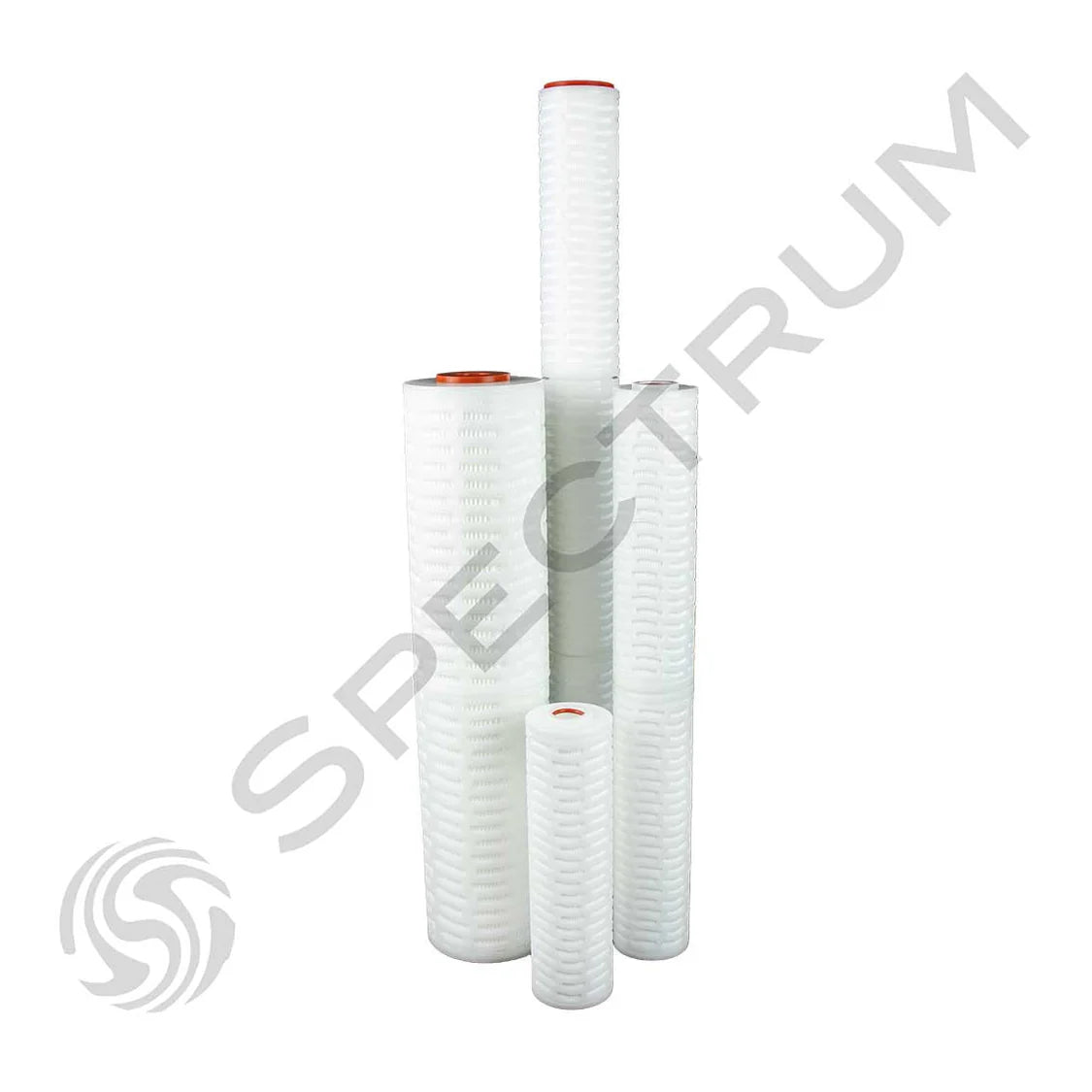

| Lengths | 4⅞", 5 (Junior), 9¾", 10", 20", 30", 40". |
| Certifications | WRAS approved, FDA compliant materials. |
Ordering Guide:
Customize your filtration solution with a wide range of configurations:
- Micron Ratings: From 0.1 µm to 100 µm.
- Lengths: 4⅞” to 40”.
- End-Caps & Seals: Options include PSU ring insert (Z) and stainless steel insert (Q).
Example: PPP-5-20AAS
Why Choose Premier Pleat Polypropylene Cartridges?
The PPP is designed for durability and performance, delivering superior efficiency, high flow rates, and an extended service life. Its innovative pleated media structure and robust cage design make it the ideal choice for industries demanding high standards in water and particulate filtration.
