Wrekin Water HF10BB-PP High Flow Filter Housing with BB Refillable 10in x 4.5in cartridge with Polyphosphate, PP10BB
Wrekin Water HF10BB-PP High Flow Filter Housing with BB Refillable 10in x 4.5in cartridge with Polyphosphate, PP10BB
SKU:HF10BB-PP
Share
Product Description
Product Description
- Refillable Cartridge Based System for whole house protection

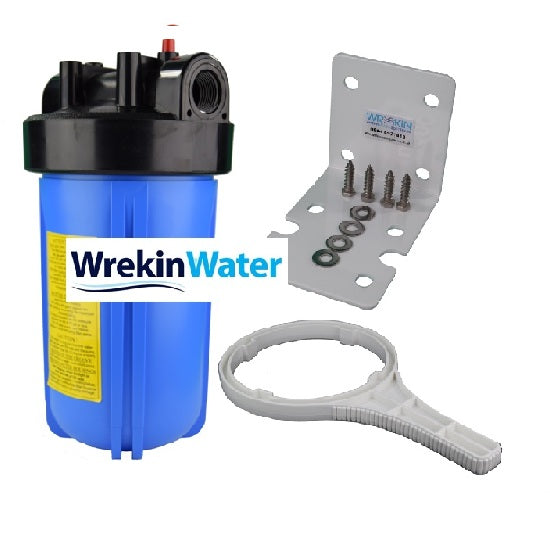

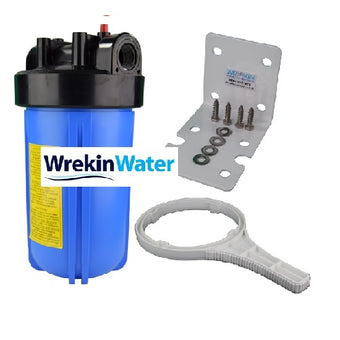

- High Flow Large Diameter Housing with Bracket, Spanner and PP10BB Cartridge
- Uses Food Grade hexameta polyphosphate material which is approved for use with drinking water.
- Scale Inhibitor - Prevents deposition of scaling minerals such as Calcium & Magnesium
- Corrosion Inhibitor - Prevents rusting of iron pipework
- Improves PH value of water and prevents acid water dissolving Copper Pipework.
- Lower Running Costs than conventional systems with Disposable Cartridges.
- 300,000 ltrs of water treated approximately with one refill
- 1" BSP ports
- Can be installed on 22mm or 28mm Pipework
- Direction of flow can be decided before attaching the bracket so makes installation easier
High flow filter housing with 1” inlet and outlet ports
The HF10BB Housing accepts any 10” High Flow cartridge. The unit has an air release mechanism to relieve water pressure when changing cartridges. A support bracket is supplied as standard. It is recommended that isolating valves are fitted either side of the unit so that the supply of water to the housing may be turned off when a filter change is required. The installer needs to supply the fittings MI 1" x 22mm or 1" x 28mm Couplers for connection to adjoining pipework. Fit on cold water lines only. Protect from freezing.
SPECIFICATIONS
Max flow through empty housing: * Approx 76 l/m at 3 bar (42psi)
Min pressure:- Approx 2 Bar (28psi)
Max pressure:- 6.8 Bar (100 psa)
Max water temp:- 20oC Water, 30oC ambient
Diameter:- 182 mm
Height:- 350 mm
Inlet / Outlet:- 1'' Bsp female
Housing material:- Polypropylene
Colour:- Blue
Filters cartridges:- 10 inch nominal
Includes:-
Spanner
Built in pressure relief valve
Metal fixing bracket
* Flow rate through housing
The maximum flow rate shows the flow through an empty housing. The flow will decrease
according to the type of cartridge installed and the water supply pressure.
