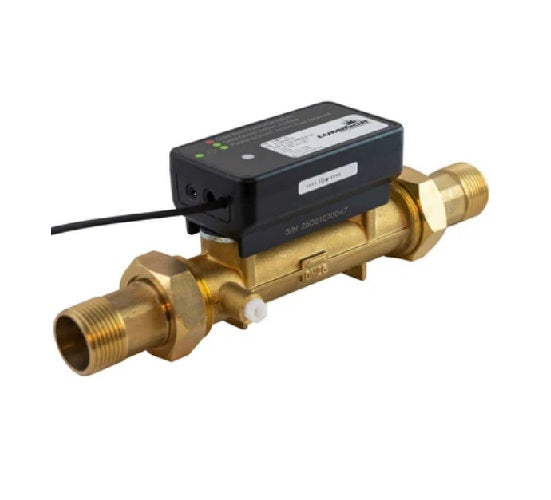

Atlas Ultrasonic Flow Meter – 1.5" Ports (Model LFM-1.5)
Accurate, Contact-Free Flow Measurement for Atlas UV Systems
The Atlas Ultrasonic Flow Meter (LFM-1.5) uses advanced ultrasonic sensor technology to provide precise, maintenance-free flow measurement for Atlas UV disinfection systems and other compatible setups.
Unlike mechanical meters, the LFM-1.5 has no moving parts, eliminating wear and ensuring long-term reliability, accuracy, and silent operation.
This model features 1.5-inch NPT ports and is suitable for high-flow installations up to 80 GPM (≈ 18 m³/h) — ideal for larger domestic, commercial, or light-industrial water treatment systems.
Key Benefits
✅ Ultrasonic Precision – Accurately measures flow using sound-wave technology with ±5% relative error.
✅ No Moving Parts – Zero mechanical wear, ensuring consistent accuracy and low maintenance.
✅ Energy-Saver Integration – Works with Atlas UV controllers to automatically dim the UV lamp during no-flow conditions, reducing energy use and preventing overheating.
✅ Fail-Safe Design – Built-in protection ensures UV treatment remains active if a sensor fault occurs.
✅ Instant Feedback – Integrated LED indicator shows flow and system status in real time.
Technical Specifications
| Specification | LFM-1.5 |
|---|---|
| Pipe Diameter | 1.5 inch |
| Flow Range | 0.4 – 80 GPM (≈ 1.5 – 300 L/min) |
| Connection Type | 1.5" NPT Female |
| Input Voltage | +5 V DC (100 mA max) |
| Accuracy | ± 5% relative error within range |
| Operating Pressure | Up to 6 bar (90 psi) |
| Orientation | Horizontal preferred; vertical acceptable if full of water |
| Inlet Piping Requirement | Minimum 15 inches straight pipe (10× pipe diameter) before inlet |

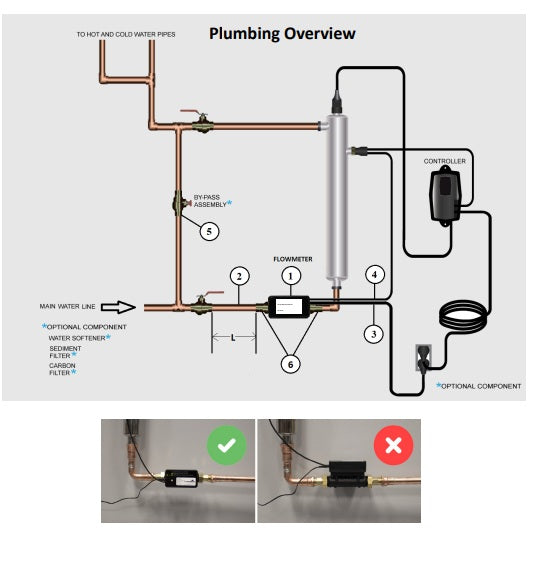

Installation Overview
-
Install on the inlet side of the UV chamber only.
-
Align flow direction arrows with the UV chamber inlet.
-
Keep at least 10× pipe diameter of straight pipe upstream for stable readings.
-
Connect via the supplied NPT adapters with union nuts and rubber washers (hand-tighten only).
-
Power via 5 V DC adapter and connect to the UV system’s IEP (Infinite Expandability Port).
Maintenance & Cleaning
-
Clean annually using a scale remover such as CLR® or LIME-A-WAY® if mineral build-up occurs.
-
Re-calibration is not required, as each unit is factory-calibrated for lifetime accuracy.
-
Inspect during UV lamp replacement for scale or debris.
