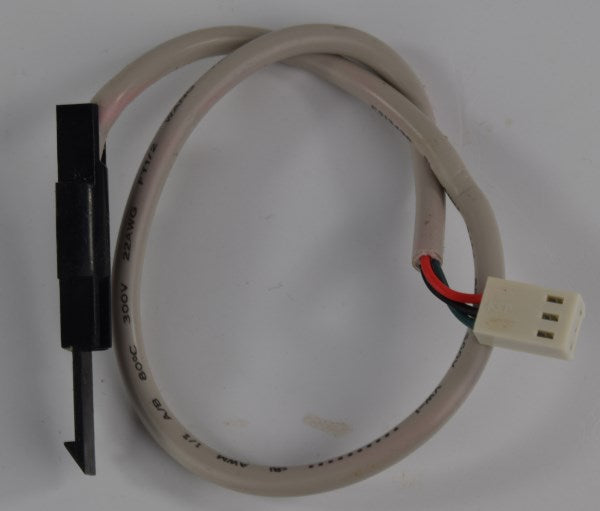

Autotrol 027837 367/368 Valve Meter cable (Metered valve only)

The 027837 is the meter cable that connects the turbine flow meter to the electronic control board on Autotrol 367 and 368 metered control valves, carrying the pulse signal the valve uses to track water usage and trigger regeneration. Without a working cable, a metered softener can't measure demand accurately, even if the meter itself and control board are both fine. WrekinWater stocks this cable for installers and homeowners with a 367 or 368 metered valve that's regenerating on the wrong schedule or not counting usage at all.

Technical specifications

Symptoms that mean you need this part

• The softener regenerates on a fixed schedule regardless of actual water usage, suggesting the meter signal isn't reaching the board
• The display shows no flow or usage registering even when water is clearly running through the valve
• The cable or its connector is visibly frayed, corroded or has come loose from the meter or control board
• Regeneration frequency has become erratic, either far too often or not often enough for the household's actual usage

Why it fails / why it matters

On a metered Autotrol 367 or 368, the turbine flow meter generates a pulse signal every time water passes through the valve, and that signal travels to the control board over this dedicated meter cable so the board can calculate how much softening capacity has been used and when to trigger regeneration. If the cable's core is damaged, its connector corrodes or a pin works loose, the pulse signal is lost or becomes intermittent, and the valve falls back to behaving like a time-clock unit or stops regenerating on demand altogether, even though the meter and board are both functioning correctly in isolation. Because the fault sits on the signal path rather than in either component, a full meter or board replacement often doesn't fix it, whereas a new cable does.

Why buy this from WrekinWater

WrekinWater has supplied genuine-spec Autotrol electronic and control components for over 15 years from its Bettisfield, Shropshire base, helping installers diagnose exactly this kind of intermittent metering fault rather than replacing parts unnecessarily. With more than 50,000 customers served and an Excellent Trustpilot rating, WrekinWater keeps low-cost, easily overlooked parts like this meter cable in stock so a metered valve can be back to accurate demand-based regeneration quickly.

How to fit it

1. Isolate the softener at the bypass valve and disconnect the electrical supply to the control board before opening the valve
2. Locate the existing meter cable running between the flow meter and the control board and note its routing
3. Disconnect the cable at both the meter end and the control board connector
4. Inspect both connectors and the meter itself for corrosion, damage or debris before fitting the new cable
5. Connect the replacement 027837 cable at both ends, ensuring each connector is fully seated
6. Restore power and water supply, run water through the valve and confirm usage registers correctly on the display before returning the softener to normal service
