Clack WS1.5CI Softener, Metered controlled valve, 1.5in
Clack WS1.5CI Softener, Metered controlled valve, 1.5in
SKU:10340000033 C00003
Share

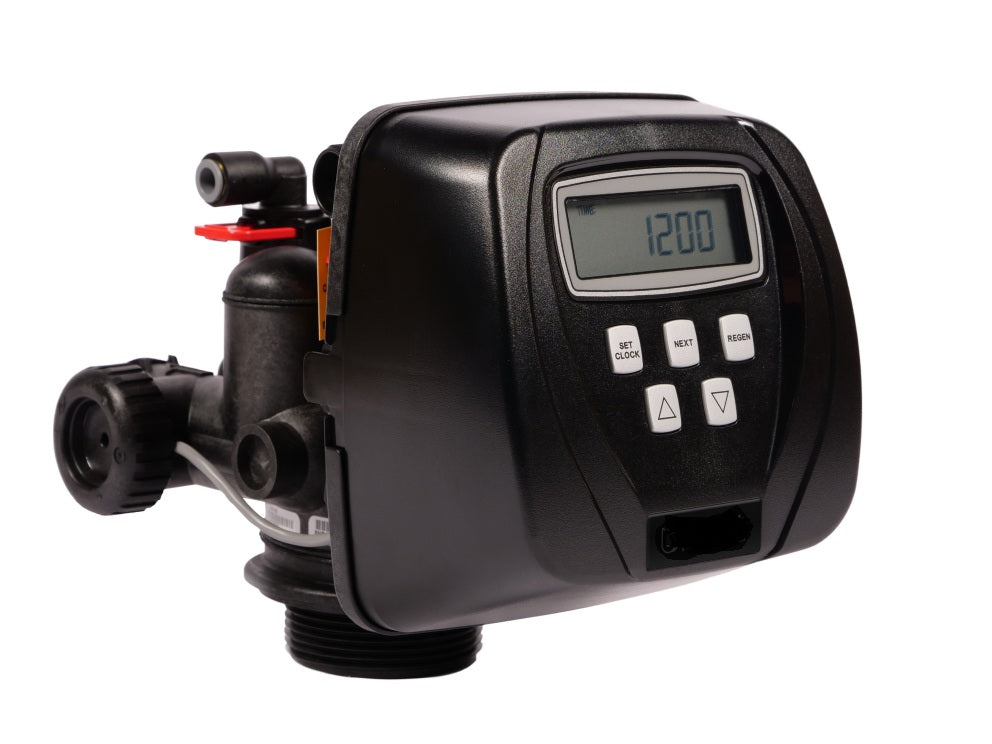

The Clack WS1.5CI Softener Meter-Controlled Valve is a robust 1.5-inch top-mount control valve designed for mid-size commercial and industrial water filtration and softening applications. With a service flow rate of 227 litres per minute and a backwash flow rate of 189 litres per minute, it efficiently handles demanding systems. The valve is crafted from lead-free brass for durability and features a solid-state microprocessor for precise control and user-friendly operation.
Key Features
-
High-Performance Design:
- Service flow rate: 227 lpm
- Backwash flow rate: 189 lpm
-
Lead-Free Brass Body:
- Durable and compliant with modern safety standards.
-
Advanced Programming:
- Fully programmable regeneration cycles (up to 9).
- Programmable in ppm, French degrees, German degrees, or cubic meters.
-
User-Friendly Interface:
- Displays time of day, days until regeneration, volume remaining, and current flow rate.
- Days override feature (1–28 days available).
-
Regeneration Flexibility:
- Four regeneration methods: meter immediate, meter delayed, time clock delayed, or pressure differential.
-
Safety and Reliability:
- Coin-cell lithium battery backup with 24-hour carryover.
- Low salt alarm for timely refill reminders.
-
Energy Efficient:
- 12-volt AC adapter for safe and easy installation.
Specifications
| Feature | Details |
|---|---|
| Model | WS1.5CI |
| Flow Rates | Service: 227 lpm, Backwash: 189 lpm |
| Valve Body | Lead-free brass |
| Control | Solid-state microprocessor |
| Regeneration Cycles | Fully programmable (max 9 cycles) |
| Regeneration Methods | Meter immediate, meter delayed, time clock delayed, pressure differential |
| Display Features | Time, days to regeneration, flow rate, volume remaining |
| Power Supply | 12-volt AC adapter |
| Battery Backup | Coin-cell lithium (24-hour carryover) |
| Days Override | 1–28 days |
| DLFC (Drain Line Flow Control) | Not included; must be ordered separately |
Applications
- Mid-Size Commercial Systems: For businesses requiring efficient water treatment solutions.
- Industrial Applications: Reliable performance for moderate industrial filtration and softening systems.
- Custom Water Systems: Ideal for systems that require programmable regeneration and high flow rates.
Benefits
- Precision and Control: Advanced programming and multiple regeneration options for tailored performance.
- Durable and Reliable: Lead-free brass construction ensures long-lasting operation.
- Energy Efficient: Low-voltage operation for cost-effective performance.
- User-Friendly Operation: Clear digital display and intuitive programming for easy use.
Additional Information
- DLFC Not Included: Please order the Drain Line Flow Control separately to complete your system.
Order Your Clack WS1.5CI Softener Meter-Controlled Valve Today
Enhance your commercial or industrial water treatment system with the reliable and versatile Clack WS1.5CI Softener Meter-Controlled Valve. Its advanced features, durable design, and flexible programming make it the perfect choice for mid-size applications.
