Pallas (Sita) 80/4 LCD RACK - 4 x 80 W 30m3/hr (30 mJ) connections DN80
Pallas (Sita) 80/4 LCD RACK - 4 x 80 W 30m3/hr (30 mJ) connections DN80
SKU:16552000023 - 2502000014
Share

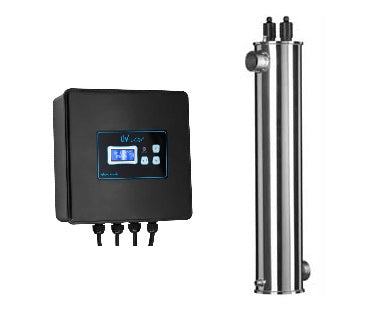

The Sita 80/4 LCD and LCD PLUS Ultra Violet System is designed to provide efficient and reliable water purification for your home or business. Manufactured in Italy to ISO 9001 quality standards, this system is WRAS approved and features a robust 304 stainless steel chamber (316 optional). The control panel includes an LCD display, hour meter, and alarm contacts for easy monitoring and maintenance.
Key Features:
- High-Quality Construction: All products are made in Italy to ISO 9001 quality standards, with 304 stainless steel chambers (316 optional) ensuring durability and longevity.
- Optimal Performance: Capable of handling a maximum flow of 16 m³/hr (30 mJ), making it suitable for various applications.
- Advanced Monitoring: The control panel includes an LCD display, hour meter, red LED fault light, and alarm relay free contact NO/NC outlet (2A max) for straightforward operation.
- Additional Features: Includes a 4-20 mA outlet and O-Norm/DVGW approved sensor.
- Electrical Supply: Operates on 230V 50/60 Hz with a protection degree of IP55.
- Temperature Range: Operates efficiently in air temperatures ranging from 2°C to 40°C.
- Pressure Capacity: Can handle a maximum pressure of 9 bar.
- PLUS Version Enhancements: Features a UV intensity meter (or temperature meter), resettable countdown hour meter with alarm for end lamp life, display of irradiation/temperature control, and shutdown for high temperature UV chamber.
