PPG 30" Spectrum Premier Pleat Glass Fibre
PPG 30" Spectrum Premier Pleat Glass Fibre
SKU:PPG-0.45-30-Single
Share

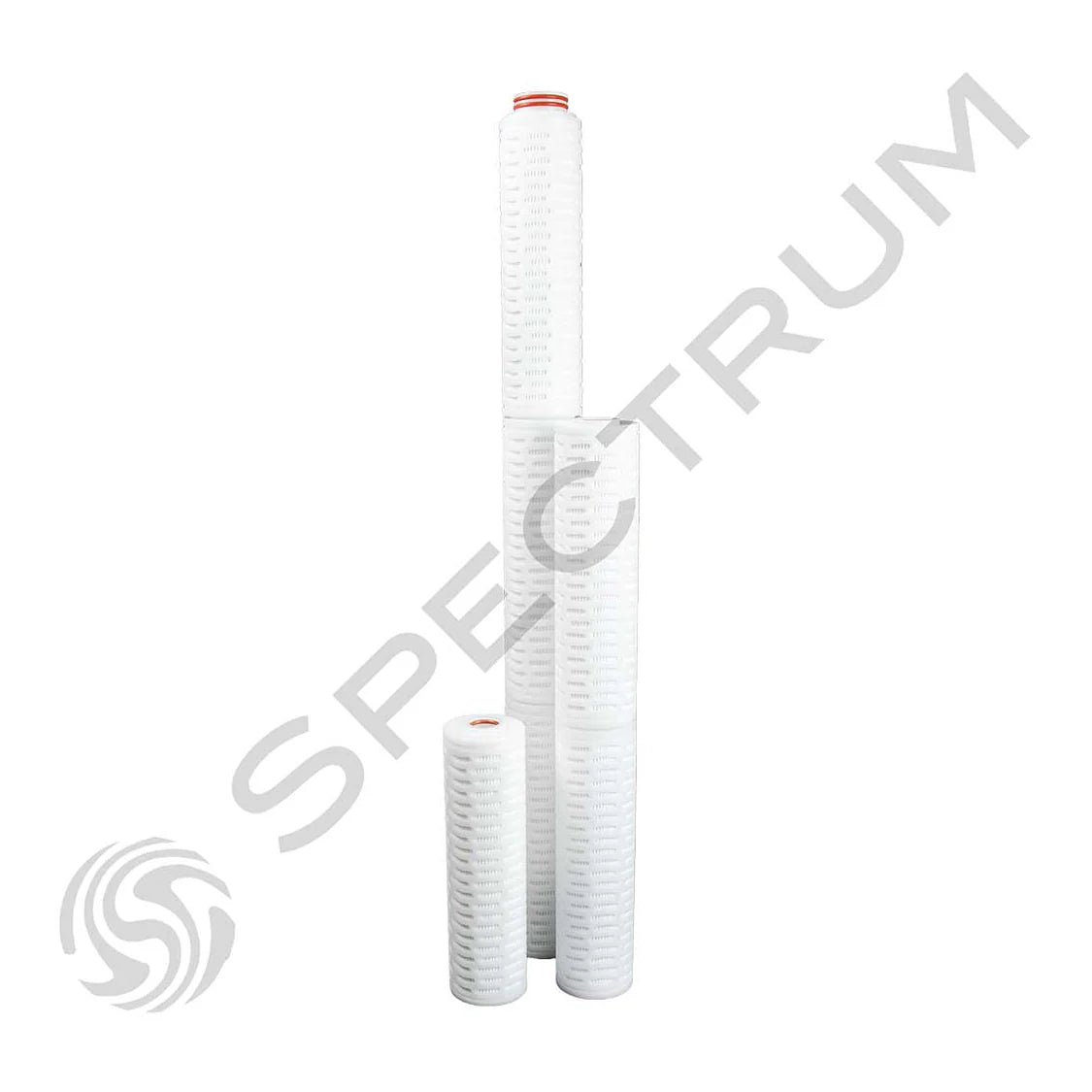

The 30" Premier Pleat PPG Glass Fibre Cartridge is a high-capacity filtration solution offering absolute rated particle removal with superior flow rates and durability. Engineered with hydrophilic Borosilicate glass fibre media, this cartridge ensures 99.98% to 99.9996% efficiency, making it ideal for demanding applications such as potable water filtration, cyst reduction, and beverage production.
Certified to NSF/ANSI Standard 53, the 30" PPG cartridge is optimised for Cryptosporidium and Giardia cyst removal, delivering reliable and safe results. Its 1.23m² filtration surface area ensures extended service life, high dirt-holding capacity, and minimal pressure drops, making it perfect for high-demand environments.
Key Features & Benefits:
- Absolute Rated Filtration: Provides up to 99.9996% efficiency, ideal for removing particles and harmful microorganisms.
- NSF-Certified Cyst Removal: Meets NSF/ANSI Standard 53 for the removal of Cryptosporidium and Giardia cysts.
- Hydrophilic Media: Borosilicate glass fibre ensures high flow rates with low-pressure losses.
- Large Filtration Surface Area: 1.23m² supports extended service life and reduced maintenance needs.
- Rugged Construction: Polypropylene cage and thermally welded end caps offer enhanced durability under rigorous conditions.
- Certified Safety: FDA-compliant, WRAS-approved materials provide reliability and consistency.
- Hygienic Packaging: Double-layer vacuum-sealed with robust outer packaging to ensure sterility and prevent contamination.
Applications & Industries:
The 30" Premier Pleat PPG Glass Fibre Cartridge is designed for high-demand filtration across industries:
- Potable Water Systems: Eliminates harmful cysts and microorganisms to ensure water safety.
- Cyst Reduction: Effectively removes Cryptosporidium and Giardia cysts in compliance with NSF/ANSI Standard 53.
- Beverage Clarification: Guarantees safety and clarity in high-volume beverage production.
- Industrial Air and Gas Filtration: Delivers precise particulate removal for critical systems.
Technical Specifications:
| Specification | Details |
|---|---|
| Materials | Borosilicate glass fibre media, polypropylene support layers, core, and end caps. |
| Surface Area (30") | 1.23m² |
| Operating Pressure | Maximum 6 bar at 21°C. |
| Maximum Temperature | 82°C (up to 120°C for sterilisation). |
| Sterilisation Cycles | 5 cycles of 20 minutes at 120°C. |
| Micron Ratings | 0.45, 1, 3, 5, 10 µm. |
| Length | 30". |
| Certifications | FDA compliant, WRAS approved, NSF/ANSI Standard 53. |
Ordering Guide:
Customise the 30" Premier Pleat PPG Cartridge to your specifications:
- Micron Ratings: 0.45 to 10 µm.
- End-Caps & Seals: Options include PSU ring insert (Z) or stainless steel insert (Q).
Example: PPG-0.45-30EHS
Why Choose the 30" Premier Pleat PPG Cartridge?
The 30-inch Premier Pleat PPG Cartridge combines exceptional filtration efficiency with high flow capabilities, making it a top choice for high-demand applications. Its advanced Borosilicate glass fibre media, extended surface area, and certified safety standards ensure reliable, long-lasting performance for potable water systems, beverage production, and industrial applications.
