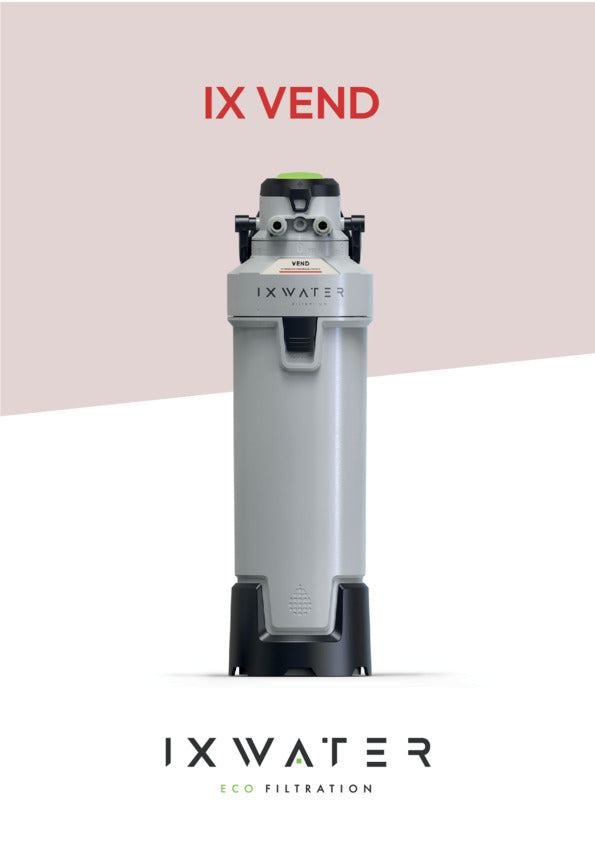

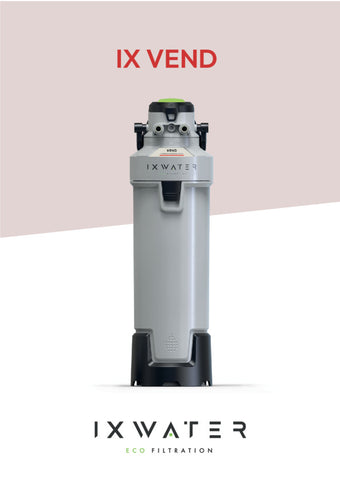

IX Vend Filter System
IX Vend Filter System
SKU:IXVEND-M
In stock
All our orders are sent with tracked courier services
Free Customer Support by experts
The IX Vend is built for high-volume vending applications — hot drinks vendors, water coolers and multi-drink machines — where consistent water quality and dependable scale protection matter across thousands of cycles. Water treatment is engineered for maximum flavour and aroma alongside dependable scale protection, prolonging equipment life while serving better-tasting hot beverages.
A 5-stage process (prefiltration, silver activated carbon, sediment reduction, media-specific water treatment, and fine filtration) handles the filtration. Like the rest of the IX range, it's built around the reusable IX Variable Head and casing, with only the internal cartridge exchanged and regenerated when it reaches capacity. On IX Vend specifically, the head's bypass must be set to 0 to make sure no hard water is dialled back into the water supply.
Technical Specifications
| Spec | Medium | Large |
|---|---|---|
| Capacity (at bypass 0) | 88,246 litres | 154,430 litres |
| Dimensions | 406mm (H) x 167mm (dia) | 580mm (H) x 167mm (dia) |
| Filter media | 5-stage: prefiltration, silver activated carbon, sediment reduction, media-specific treatment, fine filtration | 5-stage: prefiltration, silver activated carbon, sediment reduction, media-specific treatment, fine filtration |
| Head | IX Variable Head, bypass must be set to 0 in operation | IX Variable Head, bypass must be set to 0 in operation |
| Connection | 3/8" push-fit, quick-change twist-lock cartridge | 3/8" push-fit, quick-change twist-lock cartridge |
| Working pressure | 1.5 - 6 Bar (pressure-reducing valve recommended above 3.5 Bar) | 1.5 - 6 Bar (pressure-reducing valve recommended above 3.5 Bar) |
| Water inlet temperature | 4 - 30°C, cold food-safe supply only | 4 - 30°C, cold food-safe supply only |
| Flow rate | 4 litres per minute | 4 litres per minute |
| Warranty | 2 years from purchase | 2 years from purchase |
Who it's for
Vending operators, workplace and campus refreshment points, and any high-cycle drinks machine where downtime for scale-related repairs is costly.
Why buy this from WrekinWater
We help vending operators size the right IX Vend capacity against machine cycle counts, so you're not changing cartridges more often than you need to.
